CADian Architectural was developed locally by CADianUSA. Released for production in November 2004, it provides a low cost solution for Architects, Designers and Home Builders. It saves to native .dwg format.

Add Window Dialog

Dimensioning

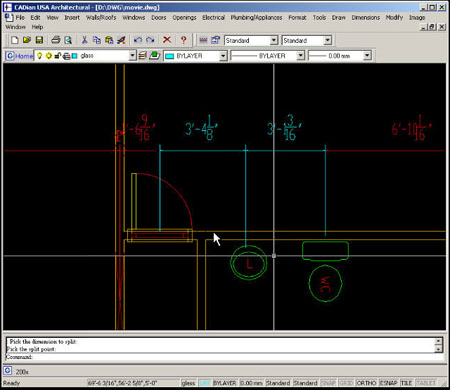

A straight line defines the location of a dimension label. The crossing of a window selects which objects center dimension will automatically be dimensional according to the ※dimension and text style.

Full Render I

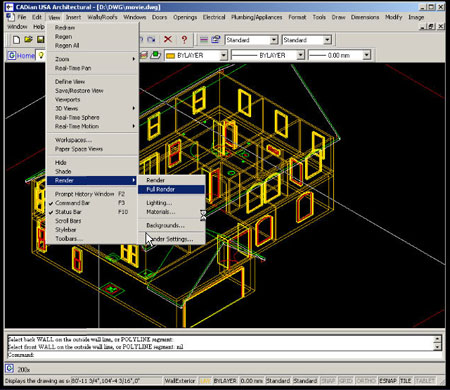

Full rendering of objects by ※Lightworks§ allows for background images, material attachments, a selection of light sources and positioning, i.e. spotlight, rear main light, sunlight, filtered light and light color customization.

Full Render II

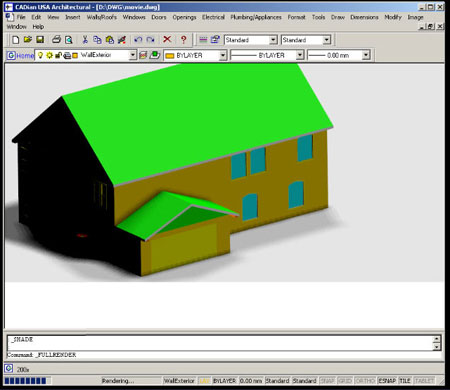

Wireframes can be easily created and selected for full rendering, material map, shadowing and base materials may be applied for dynamic effects.

Full Render III

Stairs

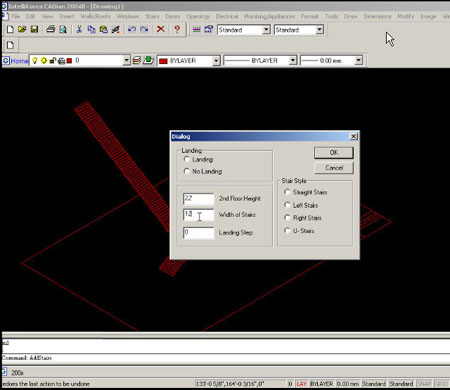

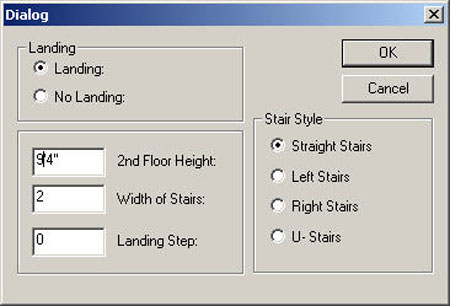

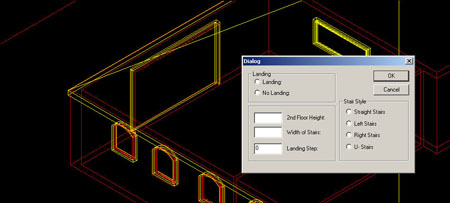

Dialog driven settings for various types of stairs and landings

Stairs II

Floor Plan

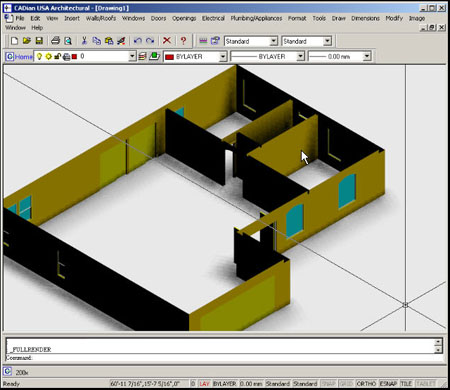

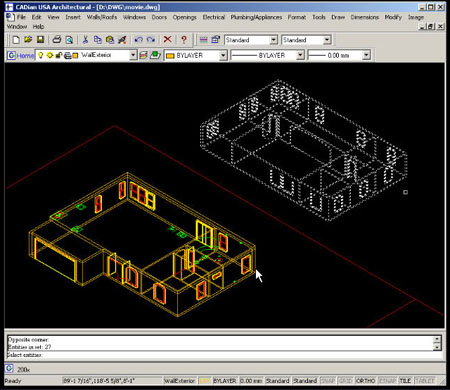

Wall objects may be created, doors, windows and openings inserted in 3D views. Foot print may be stretched or moved easily.

Opening

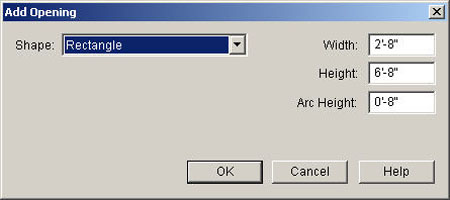

Various menus's for doors and windows as well as customized openings are easily selected and spec'd.

Roofs

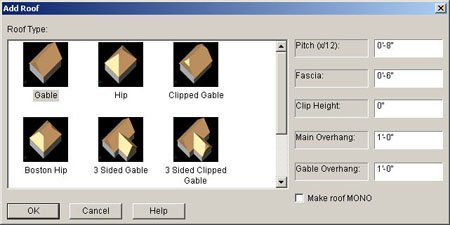

Select rood type, enter desired specifications, define left, right, front walls or fascia and easily design a 3D renderable roof design.

Zoomed Roof
